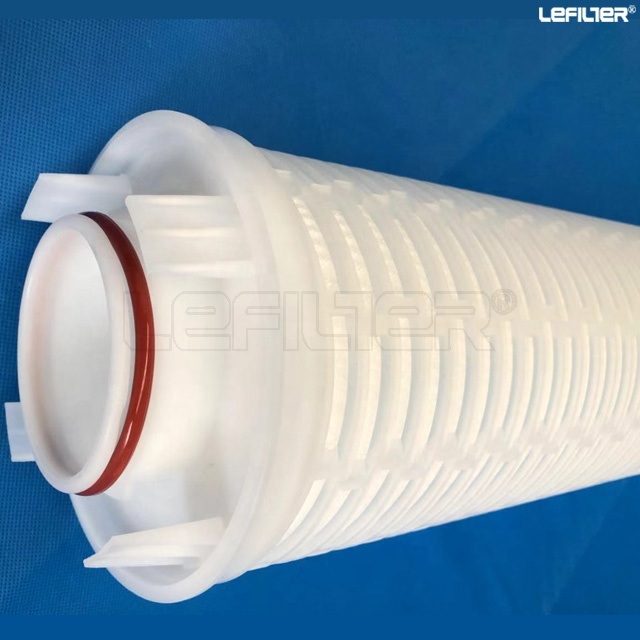

Hf60PP005D01High Flow Filter Cartridge for Water Treatment
Introduction: HF60PP010B01High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the numb
We're here to help:
Easy ways to get the answers you need.
Product parameter:
HF60PP010B01 Introduction
High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently.
3M High Flow Series Filter Specifications
| Construction | |
| Filter Media | Fibergalss , Polypropylene |
| Center Core | Polypropylene |
| End Caps | Polypropylene reinforced with Glass fiber |
| Sealing O-ring | Ethylene propylene rubber (EPR), Rubber Coated PTFE |
| Performance | |
| Filtration Accuracy | 1, 3, 5, 10, 20, 50, 70 μm |
| Highest Operation Temperature | 80℃ |
| Maximum Pressure Drop | Pleated Fiberglass-3.4Bar@20℃ |
| Recommended Change-out Differential Pressure | 2.4Bar@20℃ |
| Recommended Maximum Filtration Volume | 1300L/min. |
| Industries | Applications |
|
Municipal Water General Industrial Oil & Gas Chemicals & Petrochemicals Food & Beverage Electronics |
• Pre-RO Water |
| • Process Waters | |
| • Wastewater & Reclaimed Waters | |
| • Injection & Produced Waters | |
| • DE Trap | |
| • Clarification | |
| • Amine Sweetening | |
| • Catalyst Protection/Recovery | |
| • Machine Coolants |
Benefits
Reduced cartridge handling & disposal
Reduced filter change-out time
Less individual cartridge seal points, reducing chance of fluid bypass
High filter loading capacity
Reproducible filter effluent quality throughout life of filter
Broad chemical compatibility
No special tools or hardware required for filter change-out
"Twist-to-lock" cartridge seating mechanism provides positive seal
Ergonomic designed handle facilitates cartridge installation and removal
Other Model Nos.
HF60PP001D01, HF60PP002A01, HF60PP002B01, HF60PP002C01, HF60PP002D01, HF60PP005A01,
HF60PP005B01, HF60PP005C01, HF60PP005D01, HF60PP010A01, HF60PP010B01, HF60PP010C01,
HF60PP010D01, HF60PP015A01, HF60PP015B01, HF60PP015C01, HF60PP015D01, HF60PP025A01,
HF60PP025B01, HF60PP025C01, HF60PP025D01, HF60PP040A01, HF60PP040B01, HF60PP040C01,
HF60PP040D01, HF60PP070A01, HF60PP070B01, HF60PP070C01, HF60PP070D01,
HF40PP001A01, HF40PP001B01, HF40PP001C01, HF40PP001D01, HF40PP002A01, HF40PP002B01, HF40PP002C01,
HF40PP002D01, HF40PP005A01, HF40PP005B01, HF40PP005C01, HF40PP005D01, HF40PP010A01, HF40PP010B01,
HF40PP010C01, HF40PP010D01, HF40PP015A01, HF40PP015B01, HF40PP015C01, HF40PP015D01, HF40PP025A01,
HF40PP025B01, HF40PP025C01, HF40PP025D01, HF40PP040A01, HF40PP040B01, HF40PP040C01, HF40PP040D01,
HF40PP070A01, HF40PP070B01, HF40PP070C01, HF40PP070D01, HF60PP001A01, HF60PP001B01, HF60PP001C01,
HF60PP001D01, HF60PP002A01, HF60PP002B01, HF60PP002C01, HF60PP002D01, HF60PP005A01, HF60PP005B01,
HF60PP005C01, HF60PP005D01, HF60PP010A01, HF60PP010B01, HF60PP010C01, HF60PP010D01, HF60PP015A01,
HF60PP015B01, HF60PP015C01, HF60PP015D01, HF60PP025A01, HF60PP025B01, HF60PP025C01, HF60PP025D01,
HF60PP040A01, HF60PP040B01, HF60PP040C01, HF60PP040D01, HF60PP070A01, HF60PP070B01, HF60PP070C01
70-0201-5556-3,
70-0201-5558-9, 70-0201-5560-5, 70-0201-5562-1, 70-0201-5564-7, 70-0201-5566-2, 70-0201-5568-8,
70-0201-5570-4, 70-0201-5572-0, 70-0201-5574-6, 70-0201-5576-1, 70-0201-5578-7, 70-0201-5580-3,
70-0201-5582-9, 70-0201-5584-5, 70-0201-5586-0, 70-0201-5588-6, 70-0201-5590-2, 70-0201-5592-8,
70-0201-5594-4, 70-0201-5596-9, 70-0201-5598-5, 70-0201-5600-9, 70-0201-5602-5, 70-0201-5604-1,
70-0201-5606-6, 70-0201-5608-2, 70-0201-5610-8, 70-0201-5612-4, 70-0201-5614-0, 70-0201-5616-5,
70-0201-5618-1, 70-0201-5620-7, 70-0201-5622-3,70-0201-5624-9, 70-0201-5626-4, 70-0201-5628-0,
70-0201-5630-6, 70-0201-5632-2, 70-0201-5634-8, 70-0201-5636-3, 70-0201-5638-9, 70-0201-5640-5,
70-0201-5642-1, 70-0201-5644-7, 70-0201-5646-2, 70-0201-5648-8, 70-0201-5650-4, 70-0201-5652-0,
70-0201-5654-6, 70-0201-5657-9, 70-0201-5659-5, 70-0201-5661-1, 70-0201-5663-7, 70-0201-5665-2,
70-0201-5667-8, 70-0201-5669-4, 70-0201-5671-0, 70-0201-5673-6, 70-0201-5675-1, 70-0201-5679-3,
70-0201-5681-9, 70-0201-5700-7, 70-0702-5677-4
